How to Choose Column Corner Guards in 2026?

Choosing Column corner guards in 2026 requires more than comparing prices or surface finishes. In warehouses, hospitals, schools, and commercial buildings, a guard must protect vulnerable corners from carts, forklifts, beds, and daily foot traffic. The U.S. Bureau of Labor Statistics reported 5,283 fatal work injuries in 2023, while contact with objects and equipment remained a recognized workplace hazard category. This does not mean every damaged column creates a serious injury risk. It does show why impact protection deserves careful evaluation.

FM Global’s property loss prevention guidance emphasizes suitable building protection, impact resistance, and regular maintenance in demanding facilities. Those principles are useful when comparing stainless steel, aluminum, rigid PVC, rubber, and composite options. Start with the column’s width, corner radius, mounting height, and expected impact energy. A thin decorative profile may suit an office lobby. It may fail beside a loading dock. Measure twice.

Material selection also affects hygiene, cleaning, temperature tolerance, and long-term appearance. In healthcare environments, smooth surfaces and sealed edges can simplify sanitation. In industrial areas, anchors and adhesive systems must match the wall substrate. ASTM and manufacturer test data should support claims about impact strength, fire performance, and chemical resistance. Marketing language is not enough.

There is no universal best choice. A guard that survives forklift contact may look excessive in a hotel corridor. Conversely, a low-cost plastic model can become brittle, loose, or discolored after repeated cleaning. In 2026, responsible buyers should compare lifecycle cost, replacement access, sustainability claims, and inspection requirements—not just the first invoice. The right decision is practical, documented, and open to revision.

Table of Contents [Hide]

1 What Column Corner Guards Are and Why They Matter

2 How to Assess Column Size, Shape, and Installation Conditions

3 Which Materials and Designs Suit Different Protection Needs

4 How to Compare Safety, Durability, Appearance, and Maintenance

5 How to Select, Install, and Maintain Column Corner Guards in 2026

What Column Corner Guards Are and Why They Matter

How to Choose Column Corner Guards in 2026?

What Column Corner Guards Are and Why They Matter

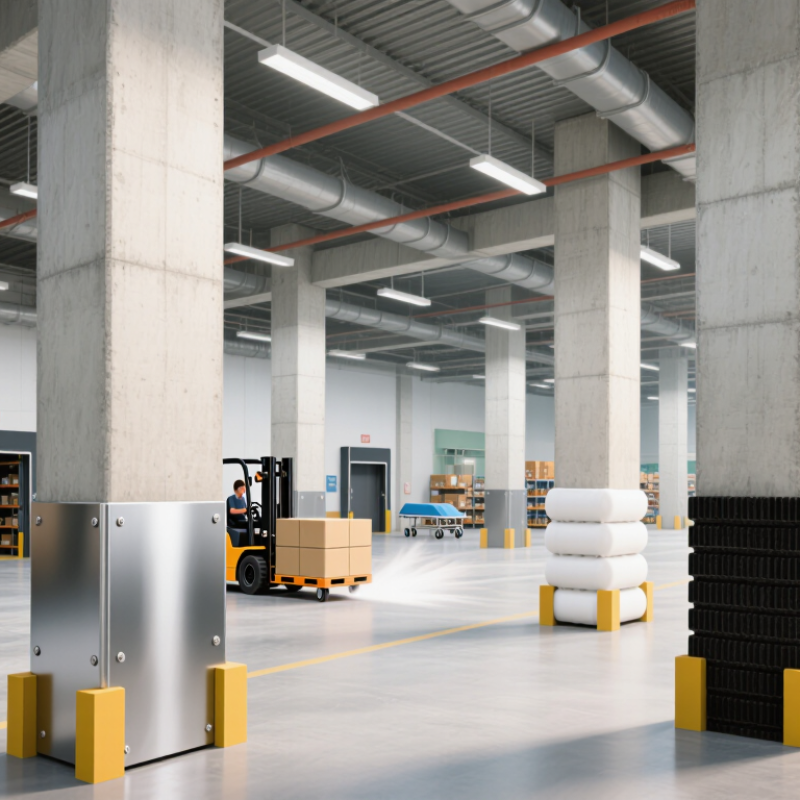

Column corner guards are impact barriers fitted around exposed structural posts. They absorb or redirect force from forklifts, pallet trucks, carts, and maintenance equipment. In a busy warehouse, one careless turn can leave a concrete column chipped, cracked, or visibly weakened. The damage may begin as a small mark.

The risk is measurable. OSHA’s Powered Industrial Trucks eTool cites about 85 forklift-related deaths and 34,900 serious injuries each year in U.S. workplaces. FM Global’s Property Loss Prevention Data Sheet 8-1 also recommends protecting structural supports from vehicle impact. These figures do not prove that every incident needs a guard. They show why impact control deserves engineering attention.

Choose guards by traffic speed, vehicle weight, clearance, and column shape. Steel barriers suit severe impact zones, while molded polymer guards can work well in lighter traffic areas. Check anchoring, height, visibility, and replacement access. Bright colors help, but lighting and floor markings still matter. A guard is not magic. Poor installation can create a trip hazard or move the impact into the slab. I have seen teams protect the post but ignore the exposed base plate. That mistake is easy to repeat. Inspect the guard after collisions, not only during annual maintenance. Expect damage, record it, and adjust the layout when traffic patterns change.

How to Choose Column Corner Guards in 2026? - What Column Corner Guards Are and Why They Matter

A practical comparison of common column corner guard materials, dimensions, protection levels, installation methods, and suitable applications.

Column Corner Guard Type	Typical Material	Common Profile and Size Range	Protection Level	Best-Fit Applications	Installation Method	Key Advantages	Important Selection Considerations
Flexible PVC Corner Guard	Flexible PVC or thermoplastic elastomer	50–100 mm wing width 2–6 mm wall thickness Lengths commonly available from 0.9–3.0 m	Light to medium impact	Offices, schools, hotels, corridors, care facilities, and finished interiors	Pressure-sensitive adhesive, construction adhesive, or mechanical fasteners depending on the model	Lightweight, easy to cut, available in multiple colors, and suitable for curved or slightly irregular surfaces	Confirm the PVC grade, cleaning resistance, temperature range, and whether the adhesive is suitable for the wall surface
Rigid PVC Corner Guard	Rigid PVC	50–100 mm wing width 2–4 mm wall thickness Standard lengths often 1.2–3.0 m	Light to medium impact	Interior wall corners, public buildings, retail areas, and low-traffic facilities	Adhesive, screws, rivets, or concealed clips	Moisture resistant, economical, easy to clean, and available in smooth or textured finishes	Rigid PVC can crack under severe impact; choose a thicker or reinforced profile for carts, trolleys, and equipment traffic
High-Impact Polyethylene Guard	HDPE or other impact-modified polyethylene	75–150 mm wing width Approximately 6–12 mm wall thickness Custom lengths are common	Medium to heavy impact	Warehouses, logistics areas, loading zones, workshops, and service corridors	Heavy-duty screws, anchors, bolts, or a mounting rail system	High impact resistance, low moisture absorption, good abrasion resistance, and easy replacement	Allow clearance for fasteners and inspect the substrate before installation; polyethylene may expand and contract with temperature changes
Rubber Corner Guard	EPDM, neoprene, or other elastomeric rubber compounds	50–100 mm wing width Approximately 6–15 mm thickness Lengths commonly 1.0–3.0 m	Medium impact	Parking structures, workshops, utility rooms, gyms, and areas needing shock absorption	Adhesive, screws, washers, or a combined adhesive-and-fastener system	Softens contact impact, reduces noise, and remains flexible over a broad temperature range when correctly specified	Check resistance to oils, fuels, UV exposure, ozone, and cleaning chemicals; rubber may mark some light-colored walls
Aluminum Corner Guard	Extruded or formed aluminum, often anodized or powder coated	38–75 mm wing width Approximately 1.5–3 mm metal thickness Common lengths up to about 3.0 m	Medium impact	Commercial interiors, hospitals, offices, schools, and areas requiring a clean architectural finish	Adhesive, screws, rivets, or concealed mounting systems	Lightweight, corrosion resistant when properly finished, and visually clean	Aluminum can dent under concentrated impact; select a reinforced profile or impact insert where carts and vehicles are present
Stainless Steel Corner Guard	Stainless steel sheet or formed stainless steel profile	50–100 mm wing width Approximately 1.0–2.0 mm sheet thickness Custom lengths are widely used	Heavy impact	Food-processing areas, commercial kitchens, hospitals, laboratories, transport facilities, and high-traffic zones	Construction adhesive, screws, rivets, or welded support details	Strong, hygienic, corrosion resistant in suitable grades, and resistant to frequent cleaning	Specify the stainless-steel grade, surface finish, edge treatment, and compatibility with cleaning agents and chloride exposure
Steel Corner Guard	Galvanized, painted, or powder-coated carbon steel	75–150 mm wing width Approximately 3–6 mm metal thickness Heavy-duty custom lengths are common	Very heavy impact	Distribution centers, manufacturing plants, parking areas, and vehicle or forklift routes	Bolts, expansion anchors, welded brackets, or heavy-duty mechanical fasteners	High structural strength and excellent resistance to repeated mechanical impact	Use corrosion protection appropriate to the environment and verify that the supporting wall or column can carry the installation loads
Foam-Padded Corner Guard	Polyurethane or polyethylene foam with a protective outer skin	50–100 mm wing width Approximately 15–40 mm overall thickness Common lengths around 0.8–2.0 m	Low to medium impact	Childcare facilities, sports spaces, temporary work zones, and areas where people may fall or collide	Adhesive backing, contact adhesive, hook-and-loop systems, or straps	Softens contact, improves user safety, and is easy to install or replace	Do not treat foam padding as a substitute for structural vehicle protection; check flame-spread, smoke, hygiene, and tear-resistance requirements
Fire-Rated or Smoke-Control Corner Guard	Non-combustible metal or a tested fire-performance composite system	Size depends on the tested assembly Common metal wing widths are approximately 50–100 mm Thickness must follow the certified system	Protection depends on system design	Protected escape routes, healthcare buildings, high-rise projects, and regulated commercial interiors	Only by the fixing method and substrate permitted by the applicable tested or approved assembly	Can support project fire-safety objectives while protecting vulnerable column edges	Never assume a material is fire rated from appearance alone; request current test evidence and verify local building-code requirements

Selection note: Dimensions and performance ranges are typical industry values rather than universal standards. Before purchasing, measure the column angle, required guard height, available fixing depth, impact source, cleaning conditions, temperature, moisture, and applicable building, fire, hygiene, or accessibility requirements.

How to Assess Column Size, Shape, and Installation Conditions

Choosing column corner guards starts with accurate field measurements, not a product photo. Measure width, depth, height, and each exposed edge. Record dimensions at the base, middle, and top. Columns can taper or carry uneven plaster. Small differences matter. Use a rigid tape and verify measurements with a second person. I once measured only the base of a damaged concrete column. The guard fit poorly higher up. That mistake still influences my inspections.

Measure twice.

Shape determines the required guard profile. Square columns usually need two flat faces and a defined corner radius. Round columns require curved protection or segmented sections. For irregular columns, make a cardboard template before ordering. Check the corner radius with a simple radius gauge. Leave enough coverage beyond the impact zone, especially near carts or pallet traffic. A tight fit is not always better. It can split when the surface shifts.

Installation conditions decide whether the selected guard stays secure. Inspect dust, moisture, paint, grout lines, and loose concrete. Adhesive needs a clean, stable surface. Mechanical fasteners need safe fixing depth and accessible tools. Allow clearance for doors, vehicles, cleaning equipment, and drainage. Outdoor columns may need resistance to ultraviolet exposure and temperature changes. Indoor guards face different risks, including frequent washing. Record installation temperature and curing time. These details are easy to overlook. Recheck alignment before fixing every section. Site conditions change, and a perfect specification can still fail when the installer lacks working space.

Which Materials and Designs Suit Different Protection Needs

When choosing column corner guards in 2026, start with the hazard, not the appearance. A warehouse aisle needs different protection from a hospital corridor or a parking structure. In site assessments, I check impact height, vehicle type, cleaning routines, and available fixing space. That small survey often prevents an expensive mismatch.

Flexible rubber absorbs repeated knocks and suits loading areas with moving carts. Polyurethane can offer strong abrasion resistance and a cleaner surface. Rigid metal guards work well against severe impacts, but they may transfer force into the column. Use them only when the substrate and anchors can handle that load. Foam profiles are lighter and softer. They fit pedestrian zones, though sharp tools or heavy trucks can damage them. Moisture, sunlight, chemicals, and temperature changes also affect service life.

Design matters as much as material. Wraparound guards cover exposed corners more reliably than narrow strips. High-visibility colors help drivers judge distance, while low-profile edges reduce trip and snag risks. Choose rounded edges, replaceable sections, and fixings that remain accessible for inspection. Measure the column before ordering. I have seen guards fail because installers measured the wall, not the corner. That mistake is easy to repeat. Review impact records after installation; a thicker guard is not always the better answer. Sometimes better placement solves more than extra material.

How to Compare Safety, Durability, Appearance, and Maintenance

How to Choose Column Corner Guards in 2026?

Choosing column corner guards requires more than matching colors. Safety should lead the decision. Check impact resistance, edge coverage, and installation stability. A guard should absorb contact from carts, pallet trucks, and moving equipment without creating sharp breaks. Measure the column carefully, including its height and corner radius. A loose fit can become a hazard.

Durability depends on material thickness, temperature tolerance, and resistance to moisture or cleaning chemicals. In busy warehouses, thin surfaces may crack after repeated impacts. Ask for test data and inspect sample sections before ordering.

Appearance still matters in offices, hospitals, and public buildings. Choose a profile that looks intentional, with clean seams and a finish that does not highlight scratches. Maintenance is often overlooked. Smooth, non-porous surfaces usually wipe faster than textured designs. However, glossy finishes may reveal every mark. That trade-off deserves honest consideration.

Tips:

Compare guards beside the actual column, not only in photographs. Press the edges by hand and check for movement. Review the fixing method, replacement process, and cleaning instructions. I once favored a visually neat guard, but its narrow coverage failed near a loading route. That mistake changed my selection process. Plan for real contact points, not ideal conditions. Keep spare sections available, because even strong protection can eventually wear.

How to Select, Install, and Maintain Column Corner Guards in 2026

In 2026, column corner guards should be chosen from measured site conditions, not appearance alone. Record column width, corner radius, wall material, traffic height, and expected impact. Warehouses often need thick, rigid protection, while offices may require slimmer profiles with softer edges. Check temperature, moisture, cleaning chemicals, and fire-safety requirements before ordering. Fit matters most. Leave enough clearance for doors, carts, and accessible routes. Select guards with tested impact data and clear installation limits.

During installation, clean the surface and remove loose paint, dust, and oil. Dry fitting first can reveal uneven corners or hidden obstructions. Mark fixing points carefully, then use suitable anchors for concrete, masonry, metal, or drywall. Adhesive-mounted guards need firm contact and the manufacturer’s stated curing time. Do not load them immediately. A rushed installation can create gaps, weak bonds, or exposed edges. Measure twice.

Maintenance should include monthly inspections in busy areas and quarterly checks elsewhere. Look for cracks, lifted edges, loose fasteners, rust, trapped dirt, and color changes. Clean with mild detergent and a soft cloth unless the material instructions state otherwise. Replace damaged guards instead of covering failures with tape. No selection method is perfect. A guard can be strong yet poorly positioned. Review collision patterns, speak with cleaning staff, and adjust protection when equipment or traffic routes change.

How to Choose Column Corner Guards in 2026?

Common commercial column corner guard heights are typically selected according to traffic intensity, impact exposure, and the area requiring protection. The chart uses widely specified nominal heights in millimetres; confirm final dimensions with local building requirements and site measurements.

For installation, measure the column, choose a guard with complete corner coverage, align it vertically, and fasten it to a clean, sound surface using the approved fixing method. Inspect regularly for loose fasteners, cracked profiles, sharp edges, and adhesive failure. Clean guards with a mild detergent and replace them when protection or secure attachment is compromised.
